What’s new?

  • Added Arduino UNO R4 WiFi support
  • Added Arduino UNO R4 Minima support
  • Added the option to send breaks, and have improved the RS485 support
  • Added initial support for QWIIC/STEMMA interfaces
  • Added proper pin mapping to all Serial and SPI interfaces, for boards that support mapping
  • Added Silicognition RP2040-Shim
  • Added Adafruit Metro RP2040
  • Added Unsigned Array components
  • Added Complex Math components
  • Improved CAN bus support
  • Added CAN bus shields support
  • Added CAN bus filter components
  • Added ESP32 CAN bus support
  • Arduino UNO R3 moved to pure text definition
  • Added support for sending Breaks over the Serial ports
  • Improved RS485 Serial support
  • Improved support for the Sending signal of the Serial ports
  • Added option to Disable any processor element
  • Improved Grove support
  • Added WakeUp by pins, and touch support for ESP32, ESP32 S2 and ESP32 S3
  • Added STM32 RTC support
  • Added option to Disable Value Source Elements

New Components:

  • Add Complex
  • Add Complex Value
  • Subtract Complex Value
  • Subtract From Complex Value
  • Multiply Complex By Analog Value
  • Multiply Analog By Complex Value
  • Divide Analog Value by Complex
  • Divide Complex by Complex Value
  • Divide Complex Value
  • Conjugate Complex
  • CAN bus Value
  • Binary To CAN bus
  • CAN bus To Binary
  • CAN bus Multi-Source Merger
  • CAN bus Multi Source
  • Repeat CAN bus
  • CAN bus On/Off Switch
  • CAN bus Toggle Switch
  • CAN bus Demux(Multiple Output channel Switch)
  • CAN bus Toggle Demux
  • CAN bus Mux(Multi channel Switch)
  • CAN bus Snapshot
  • CAN bus Array
  • Unsigned Array Delete Items
  • Unsigned Array Insert Items
  • Unsigned Array Replace Items At Index
  • Unsigned Array Snapshot
  • Remember Unsigned Array
  • Step/Iterate Unsigned Array Items
  • Get Unsigned Array Item At Index
  • Unsigned Array Value
  • Unsigned Array Replace
  • Unsigned To Unsigned Array
  • Unsigned Array Change Only
  • Unsigned Array Mux(Multi channel Switch)
  • Unsigned Array On/Off Switch
  • Unsigned Array Toggle Switch
  • Unsigned Array Demux(Multiple Output channel Switch)
  • Repeat Unsigned Array
  • Added Generic TM1637 7 Segment Display 6 Digits Module component
  • Added DIY More TM1637 7 Segment Display 6 Digits Module component
  • Improved Detect Edge(Digital to Clock) component implementation
  • Added Arduino 4 Relays Shield
  • Added HiLetgo 4 Relays Shield
  • Added Generic Multi Function Shield
  • Added Unsigned Array Package/Structure elements
  • Improved M5Stack CoreS3 support
  • Improved 74HC595 Shift Register support
  • Added 74HC595 Shift Register 8 Digits 7 Segment Display support
  • Added Complex To Complex Array
  • Analog Array Change Only
  • Analog Array Multi Source
  • Complex Array Change Only
  • Complex Array Multi Source
  • Analog Array Mux(Multi channel Switch)
  • Analog Array On/Off Switch
  • Analog Array Toggle Switch
  • Analog Array Toggle Demux
  • Analog Array Demux(Multiple Output channel Switch)
  • Repeat Analog Array
  • Complex Array Mux(Multi channel Switch)
  • Complex Array On/Off Switch
  • Complex Array Toggle Switch
  • Complex Array Toggle Demux
  • Complex Array Demux(Multiple Output channel Switch)
  • Repeat Complex Array components
  • Added 64 bit Unsigned filter components
  • Deprecated the old Dynamic 7 Segment Display components
  • Added Improved Dynamic 7 Segment Display support
  • Improved Digispark support
  • Redesigned array and binary data components to improve performance, and reduce memory usage
  • Improved On/Off delay component
  • Improved M5 Stack ATOM Matrix support

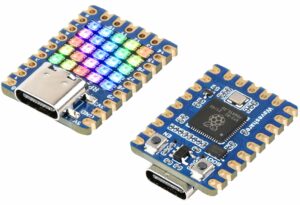

  • Improved Waveshare RP2040-Matrix RGB 5×5 Matrix support
  • Improved bpi:bit (ESP32) support
  • Added STM32 Generic STM32L031K6 support
  • Added STM32 Nucleo-32 STM32L031K6 support
  • Improved SubDiagrams support
  • This version also for first time officially includes signed installer
