QYF-TM1638 7 Segment Display, 16 Keys, Module (QIFEI)


Summary

Controls a 7-segment display with 16 buttons on a single module.

Description

The **QYF-TM1638** module provides a 7-segment display and 16 digital buttons. It allows you to configure display brightness and individual digits using the **Digits** window. Communication with the microcontroller is handled via **Chip Select**, **Clock**, and **Data** pins.

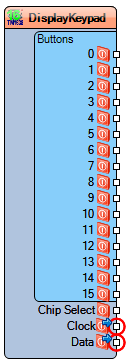

Diagram:

Properties

• Enabled – Turns the module on or off.
• Display:
  • • Brightness** – Controls the brightness of the display.
  • • Digits** – Configure individual digits (click 3 dots to open the Digits window to add/edit/remove: Section 7 Segments, Value Section 7 Segments, Integer Display 7 Segments, Analog Display 7 Segments, Text Display 7 Segments).

Pins

Output Pins

• Buttons – Digital outputs for buttons 0 to 15.

Other Pins

• Chip Select – SPI chip select pin.
• Clock – SPI clock pin.
• Data – SPI data pin.

Categories

• File:TArduinoDisplayCategory.png Category Display – 7-segment display components.
• File:TArduinoDigitalCategory.png Category Digital – Key input components.
