Summary

SPI-controlled smart multichannel switch with configurable digital outputs and monitoring pins.

Description

The **Infineon TLE8110EE** provides multiple power channels for switching and controlling loads with current monitoring. It supports SPI communication and allows configuration of output channels, initial states, and monitoring of under-voltage conditions. Suitable for automotive and industrial applications where multiple controlled power outputs are required.

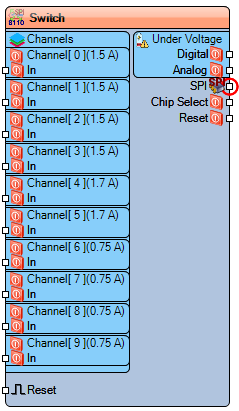

Diagram:

Categories

Properties

  • Enabled – Enable or disable the component (boolean).
  • SPISpeed – SPI communication speed (default 5,000,000).

Channels

  • Channel[0] (1.5 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[1] (1.5 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[2] (1.5 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[3] (1.7 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[4] (1.7 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[5] (0.75 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[6] (0.75 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[7] (0.75 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[8] (0.75 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)
  • Channel[9] (0.75 A) – Properties: Initial Value (boolean), Value Mode (Internal, External, Combined)

Pins

Input Pins

All channels: Channel[0] to Channel[9] (digital inputs)

  • Reset – Clock input to reset all channels

Output Pins

  • Under Voltage – Indicates under-voltage condition (digital).
  • Digital – General digital output monitoring.
  • Analog – Analog output monitoring.

SPI Pins

  • SPI – SPI communication pin.
  • Chip Select – SPI chip select pin.
  • Reset – Reset pin for SPI device.
